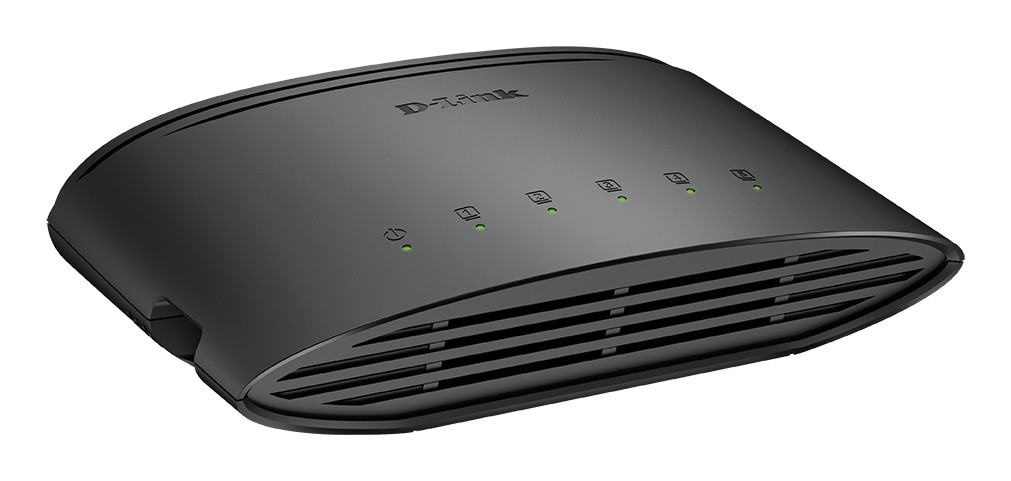

D-link dgs1005d

Technical description

General

Device Type

Switch - 5 ports - unmanaged

Enclosure Type

Desktop

Subtype

Gigabit Ethernet

Ports

5 x 10/100/1000

MAC Address Table Size

4K entries

Features

Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), packet filtering, store and forward, half duplex mode, Quality of Service (QoS), Jumbo Frames support, Cable Diagnostics Function, D-Link Green Technology

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x

RAM

128 KB

Status Indicators

Port status, port transmission speed, power, link OK, link/activity

Expansion / Connectivity

Interfaces

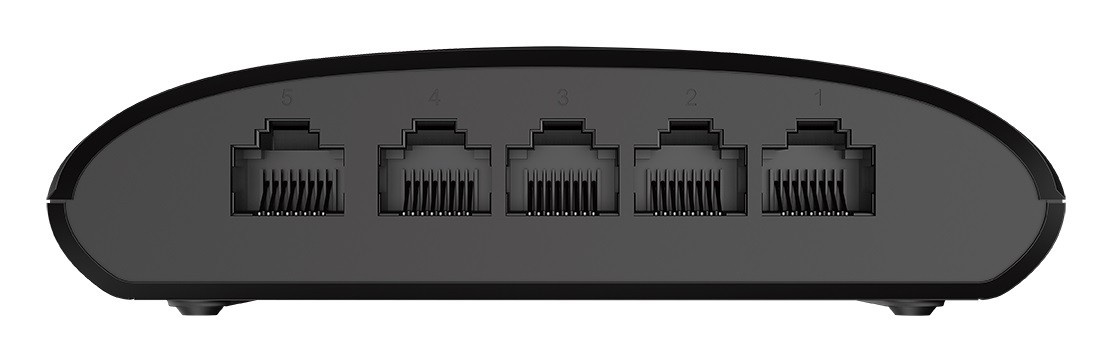

5 x 1000Base-T RJ-45

Power

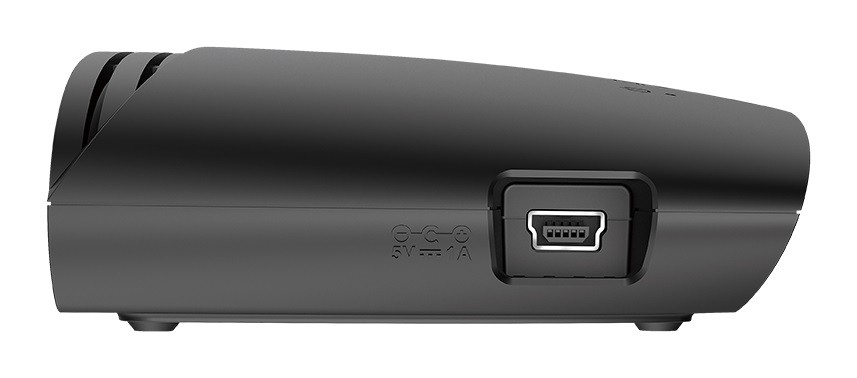

Power Device

External power adapter

Power Consumption Operational

4.5 Watt

ENERGY STAR Certified

Yes

Miscellaneous

MTBF

861,516 hours

Compliant Standards

Plug and Play, FCC Class B certified, cUL, CB, ICES-003 Class B, C-Tick Class B, RoHS, WEEE, MEPS

Localisation

Europe

Dimensions & Weight

Width

14.4 cm

Depth

10 cm

Height

3.3 cm

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

10 - 90% (non-condensing)
